FUSE/05

State of the art 36mm bolt-on scope mounts.

The lightest, stiffest, and easiest to use bolt-on scope mount available. FUSE/05 redefines the standard for mounting your 36mm MPVO or High-Powered scope to your rifle's Picatinny top rail. Available in 1.57” optic height now; 1.70" optic height coming in 2026.

LEVELDRIVE

Level your scope in seconds not hours.

FIGHT LIGHT

Engineered to be the lightest bolt-on 36mm scope mount without compromising an ounce of strength.

Scalarworks^® FUSE™ SW3310 (149grams)

57%

Geissele^® Super Precision^® 05-1795 (263grams)

100%

All Trademarks are the property of their respective owners and are used in accordance with FTC Comparative Advertising guidelines. All mounts weighed under the same conditions with all hardware necessary to attach a 36mm scope.

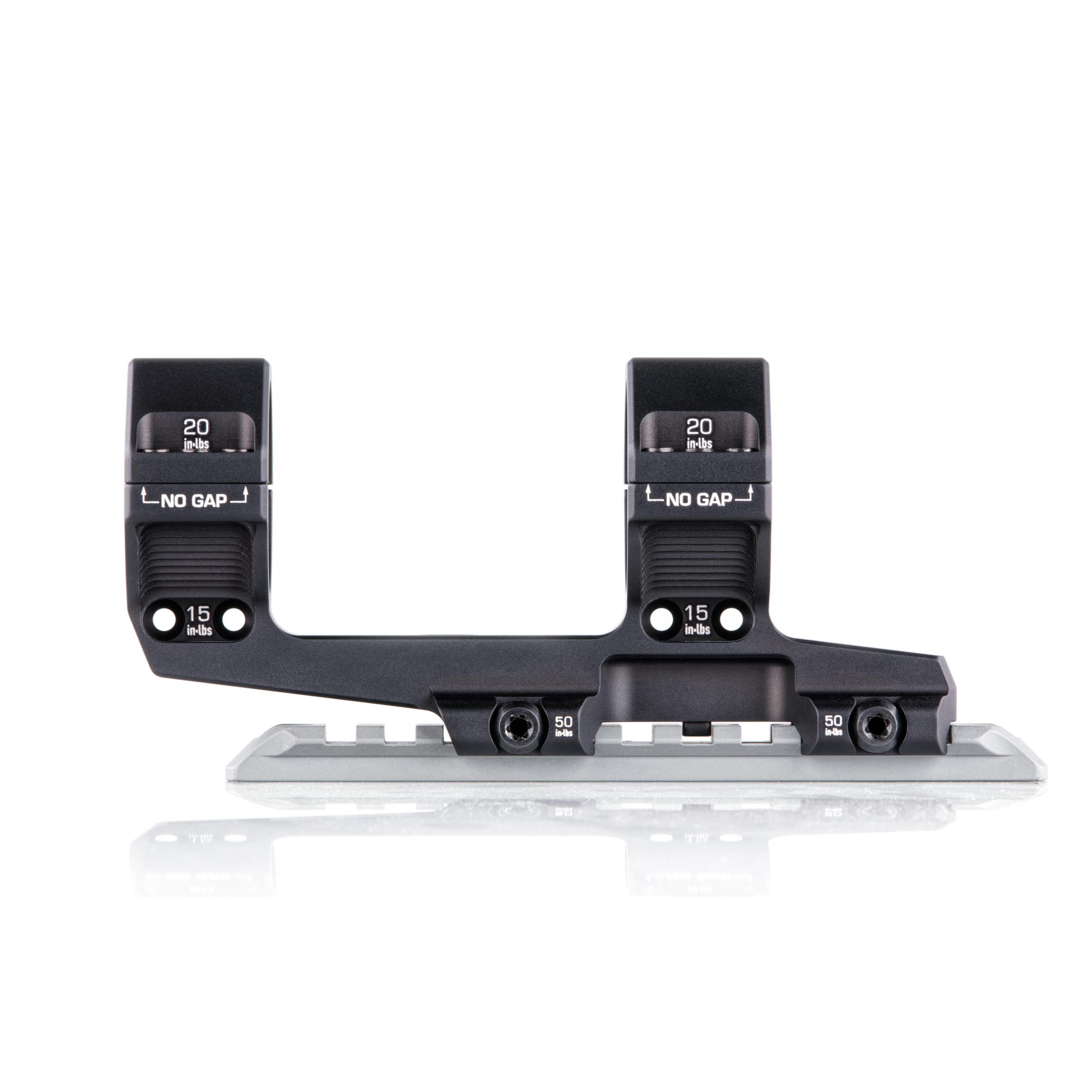

MIND THE GAP: An asymetric ring design simplifies installation and provides a more level secondary optic platform.

LEGION: More screws per ring improve clamping uniformity around your scope tube.

GROOVY: Machined inner ring grooves increase traction against your scope tube by decreasing the contact patch.

BROAD: 22% wider than standard ring designs to provide a mechanically superior secondary optic platform.

12 O'clock Dot

Extend the capabilities of your scope with a piggyback red dot.

The FUSE/05 lets you attach an optional KICK extension mount in the 12 O'clock position on the included rings.

Choose the KICK/06 to mount Trijicon RMR pattern optics or the KICK/07 to mount Aimpoint ACRO pattern optics.

Picatinny diveboard mounts coming in 2026.

SPECIFICATIONS
Materials
7075-T6 Aluminum / 4140H Steel
Finishes
Type III Anodizing / Flash Nitride
Ring diameter
36mm
Cant
0MOA
Optic center height over rail
SW4010 : 1.57"
Weight
SW4010 : 149g (5.26oz)
Origin
United States of America

COMPATIBILITY
Rails
MIL-STD-1913 Picatinny
B&T rifles
All
36mm Scopes
See technical drawing for details
KICK Extension Mounts
KICK/06 12 o'clock RMR mount
KICK/07 12 o'clock ACRO mount
