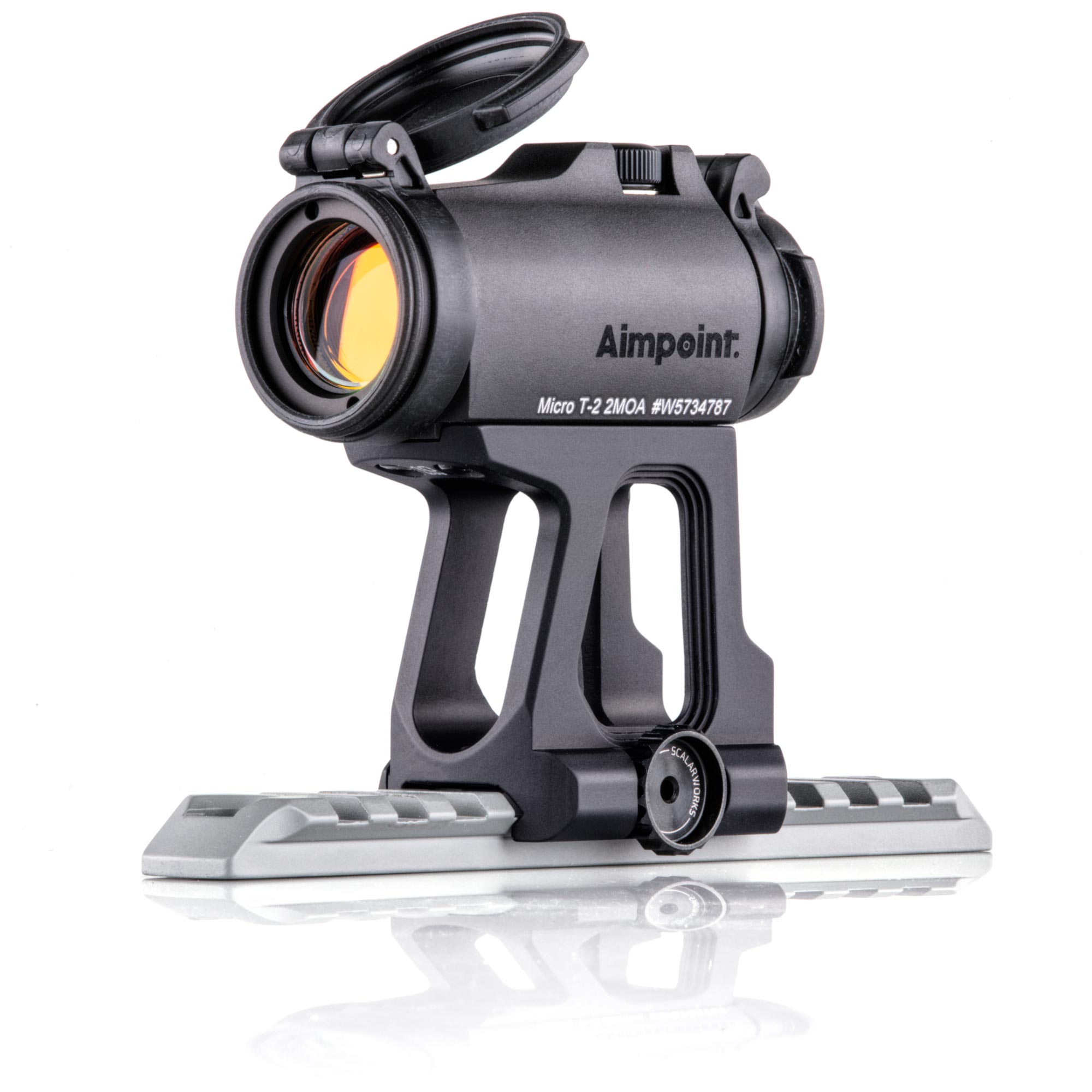

LEAP/02
State of the art Aimpoint PRO mount.
Designed for shooters who want the lightest, strongest, and most compact quick-detach optic mount possible.
ONE ZERO
Leap mounts hold and return to zero under any condition. Guaranteed.
LIGHT MADE RIGHT
Engineered to be the lightest Aimpoint PRO QD mount, without compromising an ounce of strength.
Scalarworks® SW0210 (2.45oz)
LaRue® LT150 (3.25oz)
ADM® AD-68H (3.68oz)
Bobro Engineering® B02-004-000 (4.95oz)
Aimpoint® QRP2 (5.29oz)
All Trademarks are the property of their respective owners and are used in accordance with FTC Comparative Advertising guidelines. All mounts weighed under the same conditions with all hardware necessary to attach an Aimpoint PRO in lower-third co-witness height.
MIGHTY MOUNT
The Leap is the strongest Aimpoint PRO Quick-Detach mount we've ever tested.
We put a variety of QD mounts on a digital test stand, capable of exerting up to 1500lbs of force, and analyzed load versus displacement data for each. We then used everything we learned from these tests to refine our original design, culminating in the Leap; a quick-detach mount that is both the lightest and strongest on the market today.
A highly efficient clamp design guarantees precise operation and unprecedented rigidity: It features an oversize hooded thru-hole to buttress the thumbscrew's shank, which is the maximum possible diameter to fit a Picatinny channel. A pair of hardened steel precision ground pins is press fitted to the clamp and act as guides.
During its development, the Leap mount was subjected to dozens of stress tests before a single prototype was ever made. Finite Element Analysis (FEA) helped extract every bit of performance from every gram of material. This cutting edge design process has resulted in the most efficient mount design possible.
Every Leap Mount is CNC milled from 7075-T6 billet, which has vastly superior mechanical properties to 6061-T6, and is used where ultimate strength and durability outweigh cost considerations.
The One Ring
The Scalarworks Ring was designed from the ground up to be stiffer, sleeker, and lighter than traditional rings.
A precision fitted hinge ensures even pressure around your optic, without requiring the tedious and imprecise setup that traditional rings do.
Twin oversize CNC machined shoulder screws provide even tension and act as structural elements, making the entire ring assembly phenomenally rigid.
Each side of the Scalarworks Ring is carefully lightened with a curvature continuous scallop that produces a very high strength-to-weight ratio.
The Scalarworks Ring is wider than competing designs, providing more surface area to safely and securely hold your optic.
Smooth is Fast
The Leap has no protruding levers or knobs to rap your knuckles, or get caught on clothing, gear, and surroundings.
ClickDrive™
Our patented ClickDrive™ quick-detach mechanism is intuitive, self adjusting, and completely recoil proof. By decoupling clamping force from vibration resistance, ClickDrive™ doesn't need massive amounts of imprecise torque, and is not dependent on unreliable friction. A low profile recessed thumbwheel deflects external impacts, while letting you take the mount off in under 3 seconds, with or without gloves.
Generations
The Leap mount is the most deliberate evolution of our original design.
From its introduction in 2014, the original Low Drag Mount featured our recoil proof ClickDrive™ Quick-Detach mechanism, a precision telescoping clamp with world class return-to-zero, and a CNC milled base with the industry's highest strength-to-weight ratio, all while being as low-profile as a fixed bolt-on mount.
In 2015, the second generation Low Drag Mount became the first Quick-Detach mount ever to be CNC milled from 7075-T6. Its external edges were rounded to minimize stress risers, the thumbscrew was Black Nitrided, and a pair of integral shear lugs was added to the clamp to further improve lateral impact resistance.
Today, the Leap mount features an ever stronger base with a forward lean to provide more room for magnifiers, and chamfered side pockets for improved thumbscrew access. The re-designed clamp has discreet hardened steel pins and a stopper to indicate when it's sufficiently open to clear a Picatinny rail.
Nick –
Rmr mount with Holosun 507c. The only way to go when trying to shave weight. Over a year in holding up great. I’m also glad they stand by the products they make if something happens. The only problem is getting more money together, so I can bless the rest of my current and future optics with this black magic witchcraftery
Andrew Bouch –
Very late review, but use caution when buying. Purchased a leap mount Aimpoint Pro bundle back in 2018ish. Due to buying it as a bundle, it came pre mounted. After less than a year, I saw the hinge begin to crack. Contacted scalarworks who sent me a return label to send the whole bundle back. They replaced it with what I’m guessing was a newer designed (3-4 hinge to a 5 hinge design). After another year, the hinge started to crack again so I replaced it with a different brand.
Not sure if anyone else experience this with their PRO Leap Mount. I want to like the Leap Mount because the height of the optic was much better than what I’m currently using, but the durability was not there for me.
Scalarworks (store manager) –
Hi, Andrew. Sorry to hear about your exceptionally bad luck with your LEAP/02 mounts. Unfortunately material defects happen, but they are fully covered under our warranty. If you haven’t already, please don’t hesitate to reach out to our support department so that they can make this right.
Caleb Casson (verified owner) –
Great product and well built.
Genius quick detach design.
Leon (verified owner) –
Awesome product. Never disappointed. Mount and optic came set up perfectly and correctly!!
Swapping all my mounts for scalarworks.
