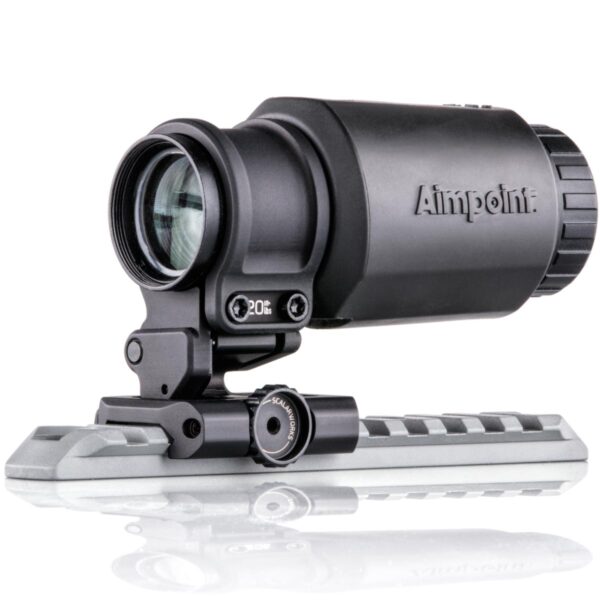

Designed for shooters who want the lightest, strongest, and most compact quick-detach Aimpoint magnifier mount possible. The LEAP/06 redefines the standard for mounting your 30mm tube compatible magnifier to your AR-15's or pistol caliber carbine’s Picatinny rail.
Engineered to be the lightest Magnifier QD mount, without compromising an ounce of strength.
All Trademarks are the property of their respective owners and are used in accordance with FTC Comparative Advertising guidelines. All mounts weighed under the same conditions with all hardware necessary to attach an Aimpoint 3X-C in lower-third height.
Every Leap mount is CNC milled from 7075-T6 Aluminum billet, which has vastly superior mechanical properties to 6061-T6, and is used where ultimate strength and durability outweigh cost considerations.
Opposing 4mm ball detents acting against Black Nitrided Chromoly steel plates provide ultra positive locking for thousands of cycles.
The Leap has no protruding levers, bolts, or knobs to rap your knuckles, or get caught on clothing, gear, and surroundings.
SPECIFICATIONS
Materials
7075-T6 Aluminum / 4140H Steel
Finishes
Type III Anodizing / Flash Nitride
Ring diameter
30mm
Optic center height over rail
SW0610 : 1.57"
SW0620 : 1.93"
Weight
SW0610 : 66g (2.33oz)
SW0620 : 70g (2.47oz)
Origin
United States of America
COMPATIBILITY
Rails
MIL-STD-1913 Picatinny
B&T rifles
APC and SPC only
Aimpoint Magnifiers
3X-C, 3X-P, 3XMag, 3XMag-1, 6XMag-1
IN THE BOX
Mount
Scalarworks® LEAP™
Fasteners
Tools
Manual
$259.00 – $1,059.00
| 5 star | 97% | |
| 4 star | 2% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Devin Lindberg (verified owner) –
Price is a bit steep but it’s an amazing Mount. Compared to the Larue transitioning to 3x is much faster and more intuitive to do with your non dominant hand. It’s top of the line in regards to magnifier mounts so you can’t go wrong.
Jose Mata (verified owner) –
I’m left handed and would have liked the flip mount to flip the other way.
Scalarworks (store manager) –
The mount is symmetrical by design so that you can attach it to your rail in either direction.
David M. (verified owner) –
This mount is typical Scalarworks – a bit pricey, but lightweight, strong, and impeccably built. The only thing that I’d change on this mount is the slight bulge at the rear above the Picatinny rail slot. On my rifles, this bulge prevents the magnifier from being mounted directly in front of the rear iron sight (Magpul MBUS Pro), thereby wasting a slot and forcing the optics further forward than I’d prefer.
