Scalarworks LEAP Trijicon MRO mount

LEAP/05

State of the art Trijicon MRO mounts.

Designed for shooters who want the lightest, strongest, and most compact quick-detach optic mount possible.


ONE ZERO

Leap mounts hold and return to zero under any condition. Guaranteed.





Scalarworks LEAP Trijicon MRO mount lightest weight

LIGHT MADE RIGHT

Engineered to be the lightest Trijicon MRO QD mount, without compromising an ounce of strength.

Scalarworks™ SW0510 (1.51oz)
48%
Larue® LT849 (2.00oz)
63%
American Defense Mfg™ AD-MRO-SOCOM (2.39oz)
75%
Kinetic Development Group™ SID5-220 (2.95oz)
93%
Bobro Engineering™ B19-555-003 (3.16oz)
100%

All Trademarks are the property of their respective owners and are used in accordance with FTC Comparative Advertising guidelines. All mounts weighed under the same conditions with all hardware necessary to attach an Trijicon MRO in lower-third co-witness height.

MIGHTY MOUNT

The Leap is the strongest Trijicon MRO Quick-Detach mount we've ever tested.

We put a variety of QD mounts on a digital test stand, capable of exerting up to 1500lbs of force, and analyzed load versus displacement data for each. We then used everything we learned from these tests to refine our original design, culminating in the Leap; a quick-detach mount that is both the lightest and strongest on the market today.


Scalarworks LEAP Trijicon MRO mount clamp

A highly efficient clamp design guarantees precise operation and unprecedented rigidity: It features an oversize hooded thru-hole to buttress the thumbscrew's shank, which is the maximum possible diameter to fit a Picatinny channel. A pair of hardened steel precision ground pins is press fitted to the clamp and act as guides.

Scalarworks LEAP Trijicon MRO mount FEA

During its development, the Leap mount was subjected to dozens of stress tests before a single prototype was ever made. Finite Element Analysis (FEA) helped extract every bit of performance from every gram of material. This cutting edge design process has resulted in the most efficient mount design possible.


Scalarworks LEAP Trijicon MRO mount 7075-T6
Scalarworks LEAP Trijicon MRO mount 7075-T6 vs 6061-T6

Every Leap Mount is CNC milled from 7075-T6 billet, which has vastly superior mechanical properties to 6061-T6, and is used where ultimate strength and durability outweigh cost considerations.

Scalarworks LEAP Trijicon MRO mount Low Profile

Smooth is Fast

The Leap has no protruding levers, bolts, or knobs to rap your knuckles, or get caught on clothing, gear, and surroundings.

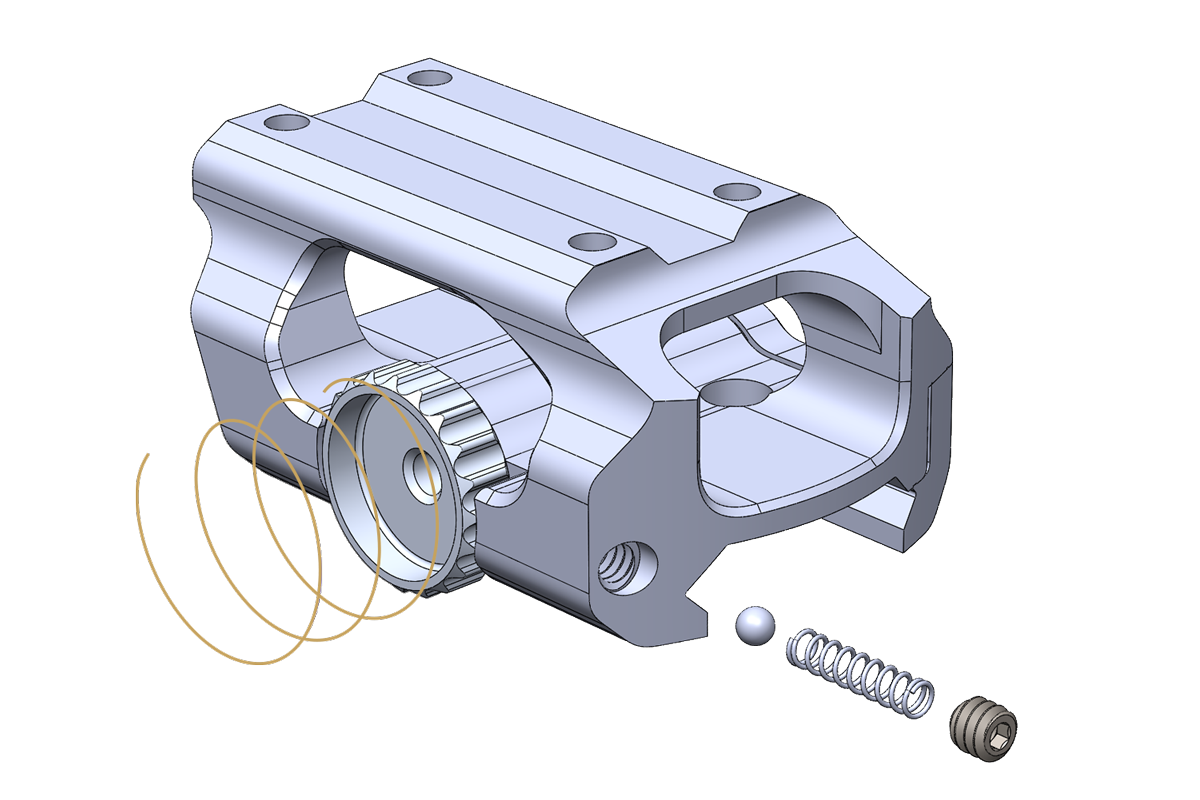

Scalarworks Leap MRO mount with ClickDrive quick-detach system

ClickDrive

Our patented ClickDrive quick-detach mechanism is intuitive, self adjusting, and completely recoil proof. By decoupling clamping force from vibration resistance, ClickDrive doesn't need massive amounts of imprecise torque, and is not dependent on unreliable friction. A low profile recessed thumbwheel deflects external impacts, while letting you take the mount off in under 3 seconds, with or without gloves.

Generations

The Leap mount is the most deliberate evolution of our original design.

Scalarworks Leap Aimpoint Micro T-2 Mount generation 1

From its introduction in 2014, the original Low Drag Mount featured our recoil proof ClickDrive Quick-Detach mechanism, a precision telescoping clamp with world class return-to-zero, and a CNC milled base with the industry's highest strength-to-weight ratio, all while being as low-profile as a fixed bolt-on mount.

Scalarworks Leap Aimpoint Micro T-2 Mount generation 2

In 2015, the second generation Low Drag Mount became the first Quick-Detach mount ever to be CNC milled from 7075-T6. Its external edges were rounded to minimize stress risers, the thumbscrew was Black Nitrided, and a pair of integral shear lugs was added to the clamp to further improve lateral impact resistance.

Scalarworks Leap Aimpoint Micro T-2 Mount generation 3

Today, the Leap mount features an ever stronger base with a forward lean to provide more room for magnifiers, and chamfered side pockets for improved thumbscrew access. The re-designed clamp has discreet hardened steel pins and a stopper to indicate when it's sufficiently open to clear a Picatinny rail.


BUNDLE UP

Worry-free, factory built optic bundles.


LEAP/05

(193 customer reviews)

$149.00$759.00


Scalarworks Shop Perks
Clear
SKU: SW05XX
SPECS
Choose a Configuration Above.
COMPATIBILITY
Choose a Configuration Above.
INCLUDED
Choose a Configuration Above.
